How to Wire External/Remote Shutdown Components

A guide on how to wire remote shutdown wiring for the Lion Energy Sanctuary System.

Please note: The system warranty is voided if any changes to the system are not done by a licensed electrician or one of our certified technicians. If in need of certification, go to certification.lionenergy.com



Useful Files/Links

Sanctuary Installation How to



Installing Remote Shutdown Components

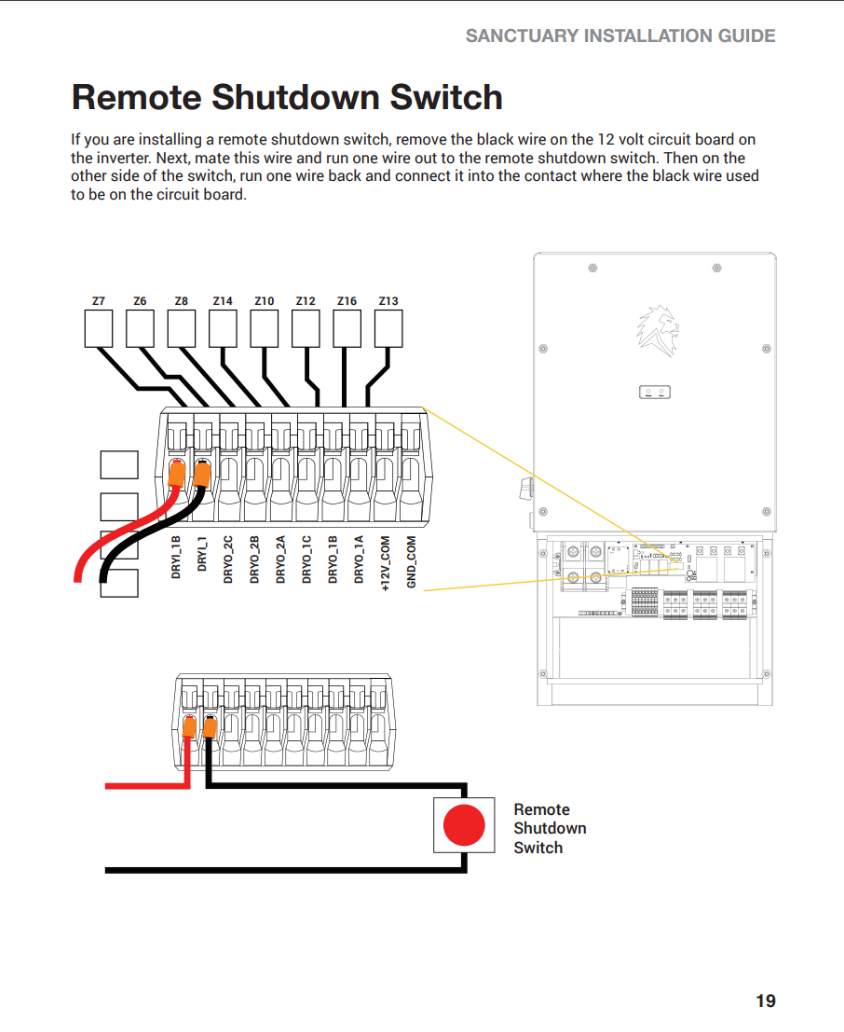

When installing an external shutdown wire, follow the diagram shown below (page 19 of the installation guide). You only need to wire into the parent inverter. Once commissioned in parallel, all inverters will turn off when the circuit is opened. The remote switches should be wired so that when in the on position, the circuit is closed. As mentioned previously, opening this circuit will cause the inverters to turn off (isolate).

undefined

Note: If the inverter button is turned on and there are no reported alarms or faults and there is no voltage on the load output terminals, there is a high probability that the wiring for the shutoff components is currently open.
